Centrale Wiggert - Twin Shaft Mixer DWM
The twin shaft mixer type DWM is perfectly suited for the ready-mix and the precast industry where large volumes of high quality concrete are demanded.
The mixing shafts are driven by two heavy-duty motors, V-belts and gear reductions
DWM 3375 |
DWM 4500 |
| Mixer cover with integrated high volume water distribution manifold is included in the standard range-of-supply. |  |
| Hydraulic unit for actuation of the discharge gate with manual pump for emergency opening. |  |

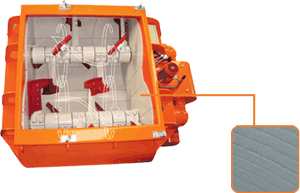

| The DWM mixing trough is lined with replaceable,highly wear-resistant armored wear liners that ensure extremely long sercvice life and low operating costs. |  |
| As option: Automatic mixer cleaning device speeds end-of-day cleanup for added production time. | |
| "DWM Twin Shaft mixer - Built on experience...proven in the ready-miy and precast industry". MobilMat Mo 120 with DWM 4500. |  |
|
| Model | DWM | 3375 | 4500 |
| Dry filling capacity | Ltr. | 3375 | 4500 |
| Compacted output per batch | Ltr. (CuYds.) |
2250 (3,0) |
3000 (4,0) |
| Mixer drive motor | KW | 2x 37 | 2x 45 |
| Mixer shaft revolution | rpm | 22,5 | 21 |
| Weight of mixer | kg | 8450 | 9600 |
